CNGP 120404FN-ALi iK20
CNGP 120404FN-ALi iK20
Regular price
£130.00
Regular price
Sale price
£130.00
Unit price
per
Only 1 left in stock.
Couldn't load pickup availability
Sold in quantities of 10

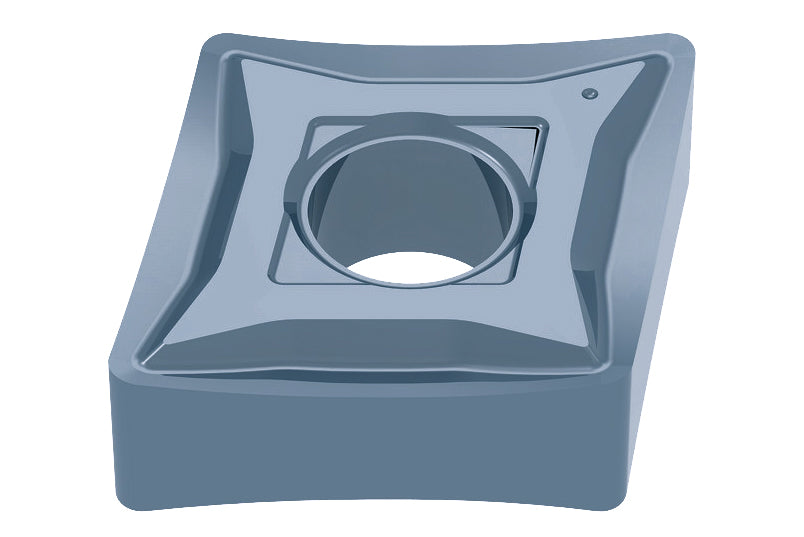

Form C, Negative-size turning tool.
The uncoated carbide grade for the machining of aluminium and other non-ferrous metals.
With sharp cutting edges.
ID no. 6219527

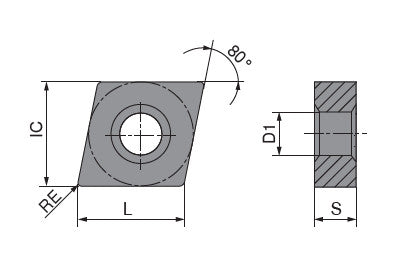

| Designation |
120404FN |
| Corner radius / RE | 0.4 mm |
| Cutting edge length / L | 12.9 mm |
| Insert thickness / S | 4.76 mm |
| Fixing hole diameter / D1 | 5.16 mm |
| Inscribed circle diameter / IC | 12.7 mm |
| Chip breaker (Ceratizit) / CBMD | -F32 |
| Coating name / Grade (Ceratizit) / COATN | CTP2120 |
